Niche-differential expression analysis using nicheDE

[1]:

set.seed(20240709)

library(spacexr)
library(nicheDE)
library(MCube)
library(ggplot2)

[2]:

DATA_PATH <- "/import/home/share/zw/pql/data/breast_cancer"
RESULT_PATH <- "/import/home/share/zw/pql/results/breast_cancer"

if (!dir.exists(RESULT_PATH)) {
    dir.create(RESULT_PATH, recursive = TRUE)
}

Applying RCTD and nicheDE to the ST dataset segmented by UCS

[3]:

seg_method <- "UCS_10X"
myRCTD <- readRDS(file.path(RESULT_PATH, seg_method, "myRCTD.rds"))

[4]:

# read in data
# create library matrix
librarymatrix <- CreateLibraryMatrix(
    t(as.matrix(myRCTD@reference@counts)),
    cbind(
        colnames(myRCTD@reference@counts),
        as.character(myRCTD@reference@cell_types)
    )
)

[1] "Computing average expression profile matrix"
[1] "Average expression matrix computed"

[5]:

weights_RCTD <- as.matrix(myRCTD@results$weights)
NDE_obj <- CreateNicheDEObject(
    t(as.matrix(myRCTD@spatialRNA@counts)), myRCTD@spatialRNA@coords,
    librarymatrix, weights_RCTD / rowSums(weights_RCTD),
    sigma = c(50, 100, 200)
)

[1] "Creating Niche-DE object"
[1] "Niche-DE object created with 17201 observations, 287 genes, 1 batch(es), and 17 cell types."

[6]:

NDE_obj <- CalculateEffectiveNiche(NDE_obj)

[1] "Calculating effective niche for kernel bandwith 50(1 out of 3 values)."
[1] "Calculating effective niche for kernel bandwith 100(2 out of 3 values)."
[1] "Calculating effective niche for kernel bandwith 200(3 out of 3 values)."
[1] "Effective niche calculated"

[7]:

NDE_obj <- niche_DE(NDE_obj, num_cores = 36, outfile = "")

[1] "Starting Niche-DE analysis with parameters C = 150, M = 10, gamma = 0.8."
[1] "Performing Niche-DE analysis with kernel bandwidth:50 (number 1 out of 3 values)"
[1] "Running Niche-DE in parallel"
[1] "Splitting Data into 1 chunks in order to avoid memory overload. Each chunk is less than 1 gigabytes."
[1] "Initializing cluster"
[1] "Evaluating chunk 1 out of 1"

Warning message in e$fun(obj, substitute(ex), parent.frame(), e$data):
“already exporting variable(s): constant_param, niche_DE_core, counts_chunk”

[1] "Closing cluster"
[1] "Cleaning disk for next iteration"
[1] "Performing Niche-DE analysis with kernel bandwidth:100 (number 2 out of 3 values)"
[1] "Running Niche-DE in parallel"
[1] "Splitting Data into 1 chunks in order to avoid memory overload. Each chunk is less than 1 gigabytes."
[1] "Initializing cluster"
[1] "Evaluating chunk 1 out of 1"

Warning message in e$fun(obj, substitute(ex), parent.frame(), e$data):
“already exporting variable(s): constant_param, niche_DE_core, counts_chunk”

[1] "Closing cluster"
[1] "Cleaning disk for next iteration"
[1] "Performing Niche-DE analysis with kernel bandwidth:200 (number 3 out of 3 values)"
[1] "Running Niche-DE in parallel"
[1] "Splitting Data into 1 chunks in order to avoid memory overload. Each chunk is less than 1 gigabytes."
[1] "Initializing cluster"
[1] "Evaluating chunk 1 out of 1"

Warning message in e$fun(obj, substitute(ex), parent.frame(), e$data):
“already exporting variable(s): constant_param, niche_DE_core, counts_chunk”

[1] "Closing cluster"
[1] "Cleaning disk for next iteration"
[1] "Computing Positive Niche-DE Pvalues"
[1] "Computing Gene Level Pvalues"
[1] "Combining Gene Level Pvalues Across Kernel Bandwidths"
[1] "Computing Cell Type Level Pvalues"
[1] "Combining Cell Type  Level Pvalues Across Kernel Bandwidths"
[1] "Computing and Combining interaction Level Pvalues Across Kernel bandwidths"
[1] "Computing Negative Niche-DE Pvalues"
[1] "Computing Gene Level Pvalues"
[1] "Combining Gene Level Pvalues Across Kernel Bandwidths"
[1] "Computing Cell Type Level Pvalues"
[1] "Combining Cell Type  Level Pvalues Across Kernel Bandwidths"
[1] "Computing and Combining interaction Level Pvalues Across Kernel bandwidths"
[1] "Niche-DE analysis complete. Number of Genes with niche-DE T-stat equal to 227"

Warning message in niche_DE(NDE_obj, num_cores = 36, outfile = ""):
“Less than 1000 genes pass. This could be due to insufficient read depth of data or size of C parameter. Consider changing choice of C parameter”

[8]:

saveRDS(
    object = NDE_obj,
    file = file.path(
        RESULT_PATH, seg_method,
        paste0(
            "NDE_obj",
            ".rds"
        )
    )
)
# NDE_obj <- readRDS(
#     file = file.path(
#         RESULT_PATH, seg_method,
#         paste0(
#             "NDE_obj",
#             ".rds"
#         )
#     )
# )

[9]:

# Target cell type: DCIS 1
# Niche cell type: Invasive Tumor
get_niche_DE_genes(
    NDE_obj, test.level = "I",
    index = "DCIS 1", niche = "Invasive Tumor",
    pos = TRUE, alpha = 0.05
)
get_niche_DE_genes(
    NDE_obj, test.level = "I",
    index = "DCIS 1", niche = "Invasive Tumor",
    pos = FALSE, alpha = 0.05
)

[1] "Returning Niche-DE Genes"
A data.frame: 17 × 2
GenesPvalues.Interaction
<chr><dbl>
6KLF5 0.000000e+00
7CDC42EP10.000000e+00
10SERHL2 0.000000e+00
2ACTA2 1.421085e-14
8KRT7 1.746159e-12
11FSTL3 7.120960e-08
16TACSTD2 3.502333e-07
17BACE2 1.428245e-03
12C6orf1324.869276e-03
9MYO5B 5.190509e-03
3MZB1 9.895541e-03
1USP53 1.268764e-02
14TPD52 1.391316e-02
4SEC11C 3.428432e-02
15SVIL 3.810915e-02
5OCIAD2 4.262528e-02
13KRT8 4.418016e-02

[1] "Returning Niche-DE Genes"
A data.frame: 5 × 2
GenesPvalues.Interaction
<chr><dbl>
4SERPINA30.000000000
2RHOH 0.001215106
3FLNB 0.015552298
1MLPH 0.016036460
5ANKRD30A0.024360175

[10]:

# Target cell type: DCIS 2
# Niche cell type: Invasive Tumor
get_niche_DE_genes(
    NDE_obj, test.level = "I",
    index = "DCIS 2", niche = "Invasive Tumor",
    pos = TRUE, alpha = 0.05
)
get_niche_DE_genes(
    NDE_obj, test.level = "I",
    index = "DCIS 2", niche = "Invasive Tumor",
    pos = FALSE, alpha = 0.05
)

[1] "Returning Niche-DE Genes"
A data.frame: 16 × 2
GenesPvalues.Interaction
<chr><dbl>
8SERHL2 0.000000e+00
10ERN1 0.000000e+00
4AGR3 1.184238e-15
2SCD 2.482522e-08
12LUM 5.016727e-07
3S100A14 1.677298e-06
13TENT5C 3.242025e-05
9SERPINA36.913058e-05
15TOMM7 7.185086e-04
5ESR1 7.284165e-04
6WARS 5.464156e-03
11CEACAM6 5.550267e-03
16FBLN1 7.937503e-03
1CAVIN2 1.007103e-02
14KRT8 2.483159e-02
7FASN 3.017706e-02

[1] "Returning Niche-DE Genes"
A data.frame: 2 × 2
GenesPvalues.Interaction
<chr><dbl>
1TCIM1.897227e-09
2KRT71.374679e-02

Comparing niche-associated genes with cell-type-specific SVGs

[11]:

mcube_object <- readRDS(
    file = file.path(
        RESULT_PATH, seg_method,
        paste0(
            "mcube_object",
            ".rds"
        )
    )
)
sig_genes_list <- mcubeGetSigGenes(mcube_object@pvalues)

mcubeGetSigGenes: Set adjust_method as BH and alpha as 0.05.


[12]:

# According to nicheDE tutorial, the niche cell type is unknown when the resoluation is "CT" (cell type).
niche_genes_T <- get_niche_DE_genes(
    NDE_obj, test.level = "CT",
    index = "DCIS 2", niche = "Invasive Tumor",
    pos = TRUE, alpha = 0.05
)$Genes
niche_genes_F <- get_niche_DE_genes(
    NDE_obj, test.level = "CT",
    index = "DCIS 2", niche = "Invasive Tumor",
    pos = FALSE, alpha = 0.05
)$Genes

[1] "Returning Niche-DE Genes"
[1] "Returning Niche-DE Genes"

[13]:

library(ggVennDiagram)
celltype <- "DCIS 2"
svg_list <- list(niche_genes_T, niche_genes_F, rownames(sig_genes_list[[celltype]]))
name_list <- c(
    "Niche-DE positive genes", "Niche-DE-negative genes",
    paste0("SVGs specific to ", celltype)
)
p <- ggVennDiagram(svg_list, name_list, set_size = 8, label_size = 7, label_alpha = 0) +
    scale_fill_gradient(low = "white", high = "dodgerblue3") +
    # scale_fill_distiller(palette = "RdBu") +
    theme(
        text = element_text(size = 32),
        title = element_text(size = 24),
        legend.position = "none"
    )
ggsave(
    filename = file.path(RESULT_PATH, "niche_DE_genes_venn.pdf"),
    plot = p, width = 10, height = 6
)
p


Attaching package: ‘ggVennDiagram’


The following object is masked from ‘package:spacexr’:

    process_data

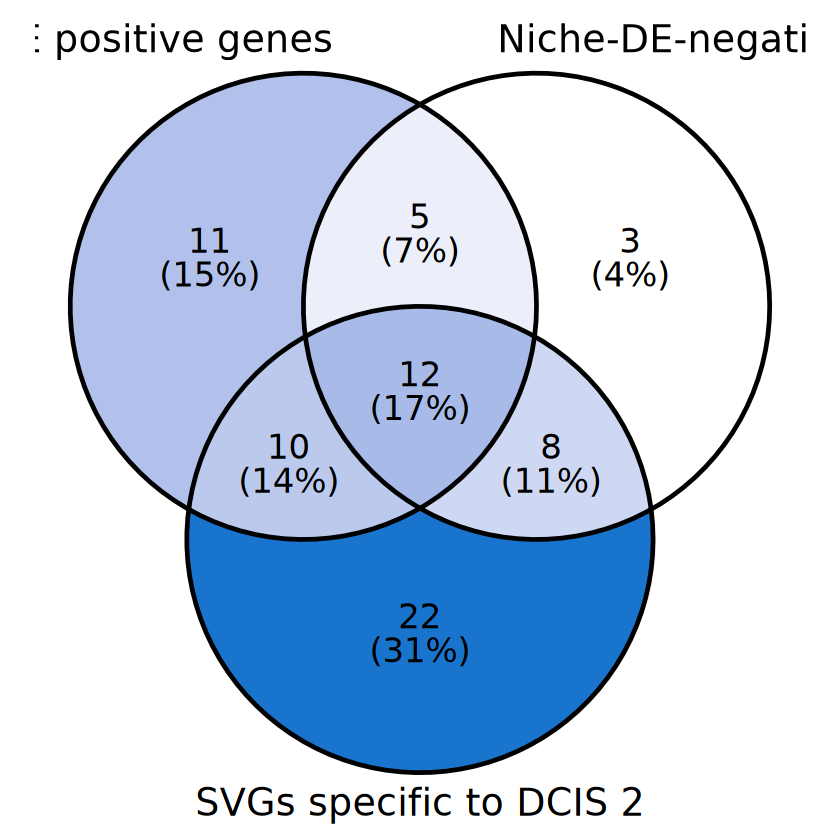

../../_images/analysis_breast_cancer_breast_cancer_nicheDE_15_1.png
[ ]:
